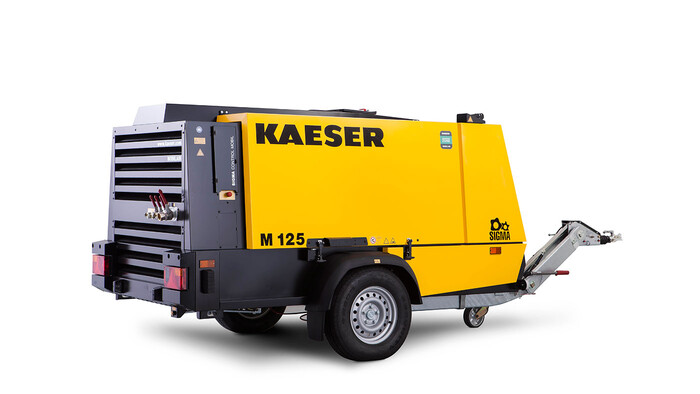

M125 portable compressors are easy to transport, feature a compact design that is perfectly suited to construction site environments and combine exceptional power with maximum versatility.
In addition to their compact design and light towing weight, a key advantage of M125 compressors is their new variable pressure feature: thanks to infinite, dynamic pressure and delivery control, a single machine can be operated anywhere between 7 and 14 bar at any time. This eliminates the need to choose a fixed pressure stage by automatically adjusting maximum air delivery to match the selected pressure setting. Set to a pressure of 7 bar and a flow rate of 11.5 m³/min, these all-purpose compressors are ideal for breaker applications, yet when set to 12 bar with a flow rate of 10.7 m³/min they become the perfect machines for cable-blowing applications. At maximum pressure of 14 bar, a flow rate of almost 10 m³/min is available.
Featuring a low-emissions Deutz engine and a diesel particulate filter fitted as standard, M125 compressors comply with EU Stage V and Tier 4 Final emissions standards, whilst the energy-saving fan helps to achieve up to 6 percent additional diesel savings.
The integrated Sigma Control Mobil machine controller enables easy and intuitive control of the compressor via simple arrow keys. It also provides information regarding operating data and indicates when maintenance is due.
Furthermore, the M125 can be optionally equipped with a 13 kVA generator. Here once again, the Sigma Control Mobil controller truly comes into its own with its dynamic delivery control, which adjusts maximum compressed air delivery according to how much electrical power is required.
Key features of the optional, integrated compressed air treatment system include the aftercooler which is installed at an angle to ensure reliable frost prevention during the winter months, as well as a ball valve that allows compressed air discharge temperature to be adjusted according to the needs of the specific application. The M125 product range also includes a stationary version in addition to the road-going variants.
