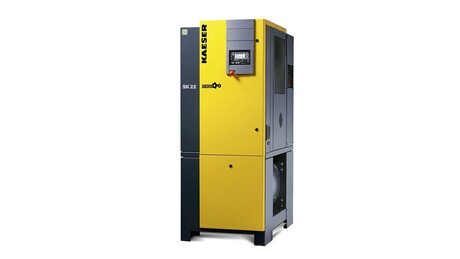

Covering a free air delivery range from 0.26 to 2.55 m³/min (at 8 bar), Kaeser’s “Aircenter” series models provide dependable and efficient compressed air production, treatment and storage within a single compact unit ("Aircenter 22" shown in image).
All "Aircenter" models are characterised by their exceptional efficiency and there are now new versions of the two largest models, the “Aircenter 22” (11 kW) and the “Aircenter 25” (15 kW). At the heart of these systems lies an optimised SK series rotary screw compressor from Kaeser. With a maximum flow rate of 2.7 m³/min the new SK models deliver up to 11 and 14 percent more compressed air, respectively, than their predecessors. This impressive performance boost has been achieved both through airend optimisation and the minimisation of internal pressure losses. In turn, these improvements have lead to a reduction in specific power of up to 5 percent. The use of premium efficiency IE3 electrical motors has also contributed to additional energy savings. A further important efficiency-enhancing component is the “Sigma Control 2” internal controller: equipped as standard and assuring maximum communication capability, this advanced system not only enables demand-oriented performance matching and dependable monitoring, but - through its numeros interfaces - also ensures even greater flexibility when it comes to connection to energy-saving Sigma Air Manager 4.0 master control system. The compressed air system can therefore be seamlessly integrated into Industrie 4.0 environments since the necessary interfaces for connection to the Kaeser Sigma Network are provided as standard. The addition of an integrated RFID reader ensures service continuity, increases security and significantly raises service quality.
Moreover, all models share logical and user-friendly design throughout. For example, the left enclosure panel can be removed in a few simple steps and allows excellent visibility of the system's intelligently laid out components. As one might expect, all service points are easy to access. With the sound-damping enclosure panels in place, the already low operational sound levels from these compressors are reduced to a super-quiet background hum. In addition, the enclosure features four inlet openings for separate airflow cooling of the compressor, the motor and the switching cabinet and for compressor intake air. Kaeser's unique cooling system is equipped with a patented premium-efficiency dual-flow fan with separate cooling air flows for the motor and compressor. This not only achieves optimum cooling performance, low compressed air discharge temperatures and minimal sound levels, but also promotes efficient air compression.
The space-saving combination of a compressor, a thermally shielded refrigeration dryer and an underslung 350-l air receiver provides dependable and efficient compressed air production, treatment and storage within a single unit. As you might expect from a leading compressed air system provider such as Kaeser, these versatile units can also be equipped with air filters as required. The “Aircenter 22” and “Aircenter 25” are also available with an integrated frequency converter (“Sigma Frequency Control” - SFC) for applications where speed control is an advantage.
The smaller “Aircenter” models are based on Kaeser’s SX or SM series rotary screw compressors. Equipped with a 200-l or a 270-l air receiver, these versions cover flow rates from 0.34 to 1.5 m³/min (at 8 bar) and ensure super-quiet, efficient performance. As with the two largest models, 11- and 15-bar versions are available for applications requiring larger volumes of compressed air. Furthermore, the “Aircenter 12” can also be equipped with variable speed control.
Users who require not just an efficient compressor, but an all-in-one, compact compressed air system need look no further than an “Aircenter” system from Kaeser. True to Kaeser’s “Plug and Work” maxim, every model is ready for immediate operation once connected to the electrical supply and compressed air distribution network.
